Digital Socket Fusion Welding Machine

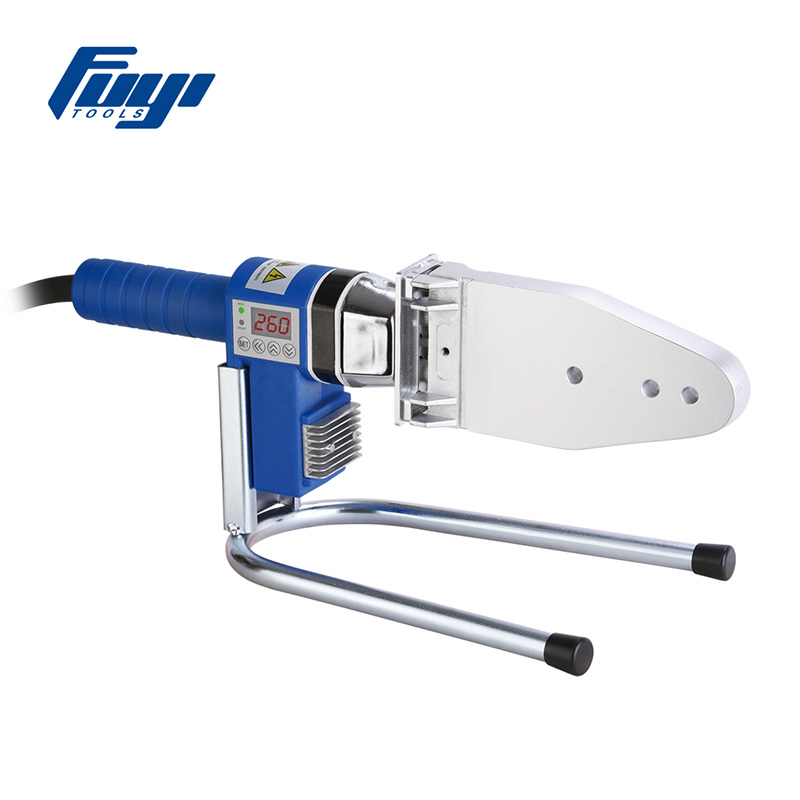

FYD63 63mm PPR Digital Socket Fusion Welding Machine with LED Window Temperature Display

FYD63 63mm PPR Digital Socket Fusion Welding Machine with LED Window Temperature Display adopts digital control technology and combines the LED window temperature display function. Through the LED display, users can monitor and control the temperature during the welding process in real time to ensure welding quality and safety. The temperature display is accurate and the response is quick, which can effectively prevent the problem of poor welding quality caused by insufficient or excessive temperature, and ensure the firmness and sealing of pipeline connections.
This welding machine has a welding range of 63mm, which can meet the connection needs of PPR pipes of various specifications. It has a compact design, reasonable structure, and easy operation, making it suitable for various environments and work scenarios. Made of PVC material shell, it has good wear resistance and durability, and can maintain stable performance in harsh working environments.

E-mail: [email protected]
Inquiry Us Now!
PREV：20-63MM 800W FYD63-1 Digital Socket Fusion Welding Machine Kit
NEXT：FYD40 600W PPR/HDPE Digital Socket Fusion Welding Machine

  • KEY FEATURES
    1. You can adjust the corresponding temperature according to different pipe materials, which are indicated on the digital display screen. Increased flexibility and combination options for everyday use.
    2. Electronic intelligent control system, can realize automatic temperature compensation.
    3. Sockets with Japanese Daikin polyflon PTFE coating, for a longer lifetime and great fusion effect.
    4. Reinforced nylon handles, it's more comfortable.
    5. Heating interval signal lights
    6. Two kinds of removable supporting stands are available at all times.
    7. A set of dedicated wrenches convenient to use and carry
    8. 1mm Thickened steel box, it will not be broken after a long time used.
    9. In case the intelligent control device fails, there is a warning temperature. The warning temperature is based on setting temperature plus 30C. When this happens, the heating panel will stop heating. (For example, if your setting temperature is 260°C, the warning temperature is 290°C).



    Technical Data

    FYD63

    Rated Voltage:

    110V/220V

    Rated Frequency:

    50/60HZ

    Rated Power:

    800W

    Working Temp:

    220°C-260°C

    Temp.Tolerance:

    ≤2°C(professional test method)

    Warning Temp:

    set temperature +20°C

    Environment Temperature:

    -5°C-45°C

    Working Range Φ mm:

    20,25,32,40,50,63

    Suit Material:

    PP-R/PB/PE/PVDF

    Net Weight(Set):

    7.96KGS

    PCS/Carton:

    2PCS

    N.W/Cartons：

    15.92KGS

    G.W/Cartons:

    17.92KGS

    Cartons Size:

    46.0x26.5x26.5CM

    Including the following accessories

    1 PC Fusion Welding Machine

    1 PC Floor Stand

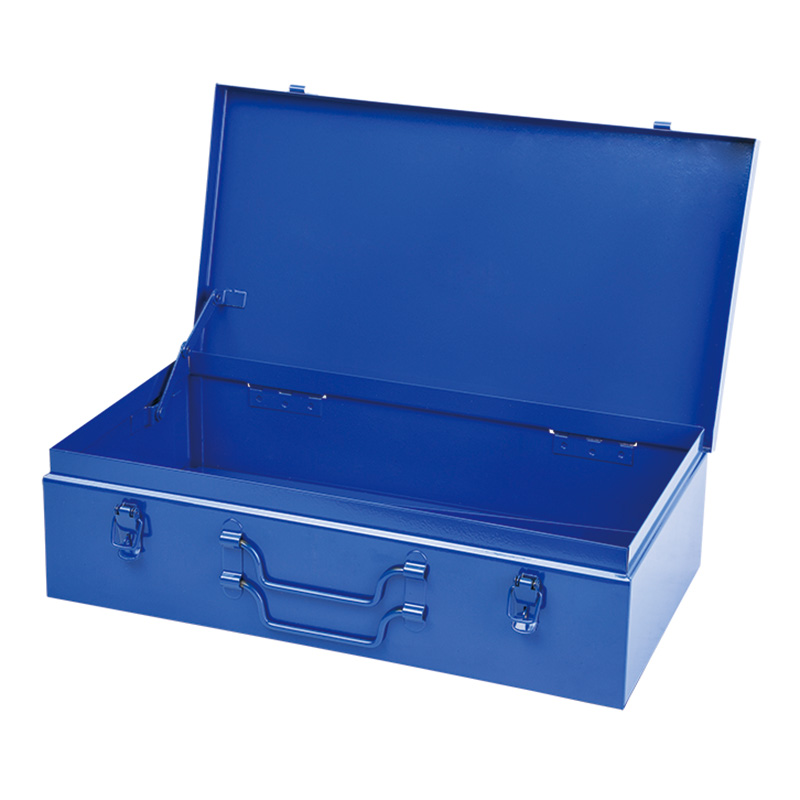

    1 PC Metal Case

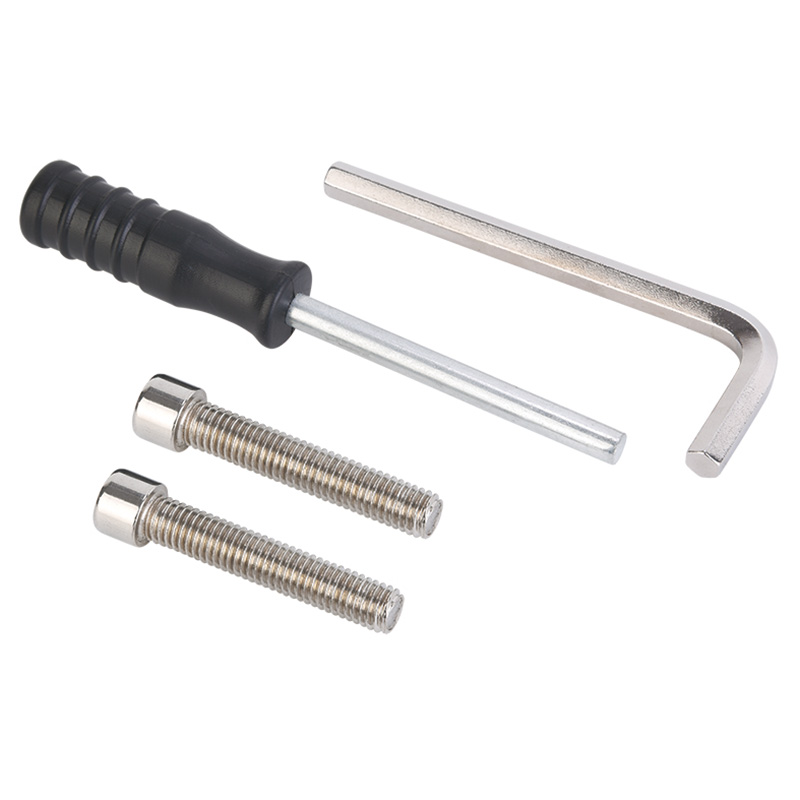

    1 PC Bag of Bolts and Hex Key Wrench

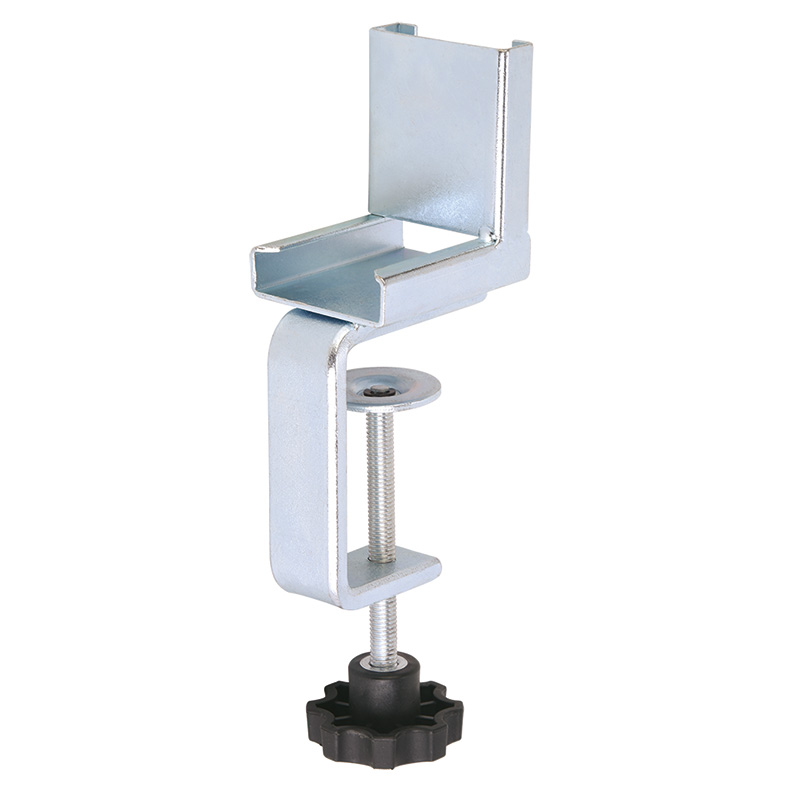

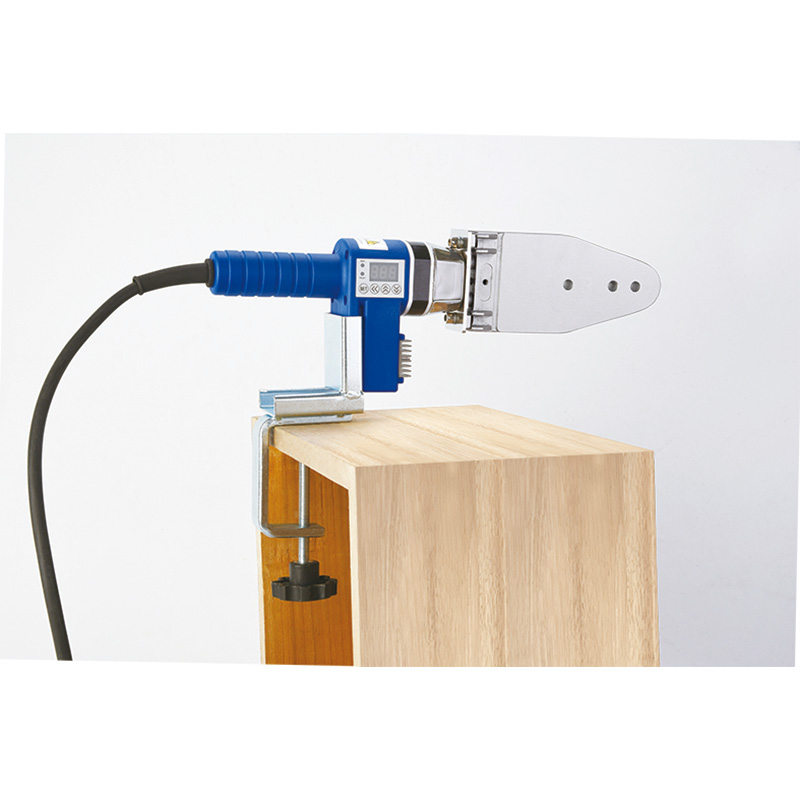

    1 PC Table Mounting Clamp (Optional)

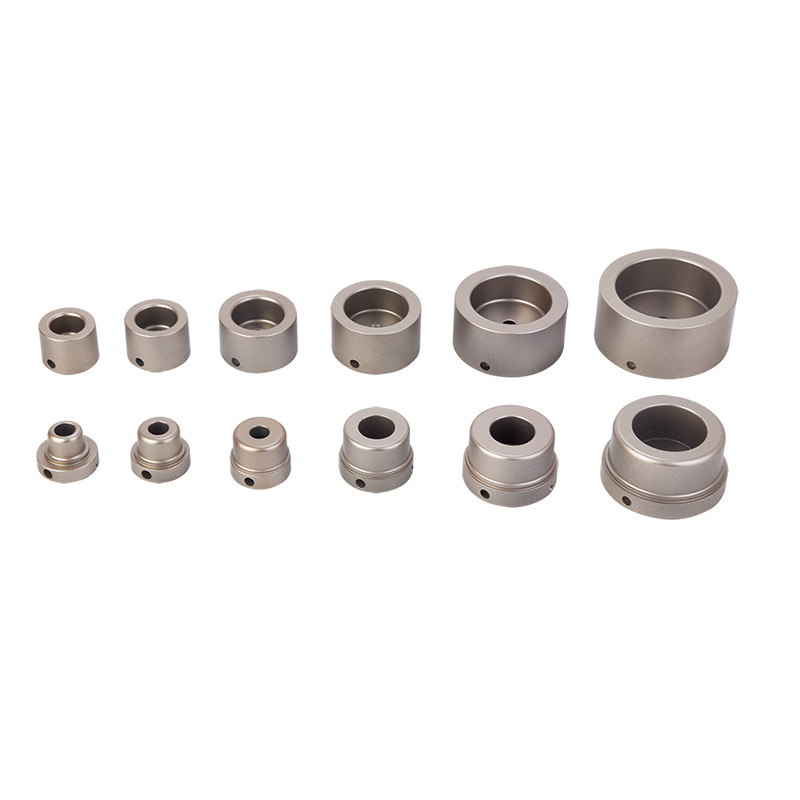

    Sockets D20、D25、D32、D40、D50、D63
