What Is an Electrofusion Welding Machine?

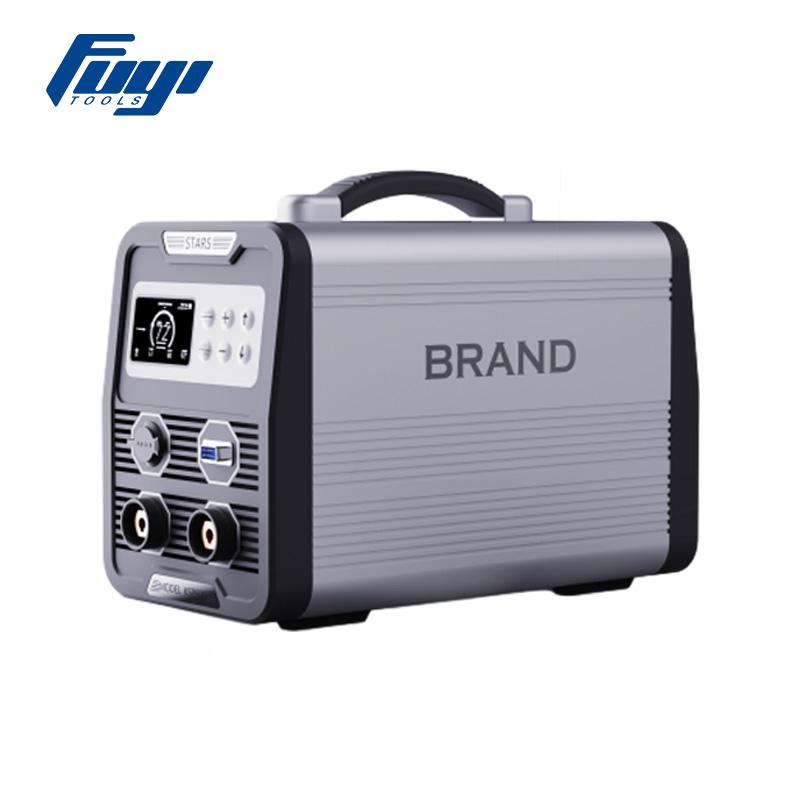

An electrofusion welding machine is an advanced tool used to join thermoplastic pipes and fittings by using controlled electrical energy to generate heat. This process is commonly used for HDPE (High-Density Polyethylene) pipes, but it also works for MDPE (Medium-Density Polyethylene) and PP (Polypropylene) pipes.

Electrofusion welding relies on electrofusion fittings, which have built-in heating coils. When a current is applied to the fitting, it heats up and melts the surfaces of both the pipe and the fitting, creating a strong, seamless bond once cooled. This method ensures that the joint is both durable and leak-proof, ideal for critical infrastructure like water and gas pipelines.

How Does an Electrofusion Welding Machine Work?

The process involves a few key steps. Let’s break down each one:

1. Preparation

Before the welding process begins, proper pipe preparation is essential for creating a strong joint.

Cut the pipe to the desired length using a pipe cutter or saw.
Clean the pipe surface to remove any dust, dirt, or oxidation that could interfere with the fusion process.
Scrape the outer surface of the pipe to expose fresh material and ensure proper bonding with the electrofusion fitting.

2. Clamping

The pipes and fittings are aligned and clamped securely in place.

Align the pipe and fitting carefully to ensure there is no misalignment during welding.
Use specialized clamps that hold the pipe and fitting in place without damaging the surfaces.

3. Connection

Once everything is aligned, the electrofusion machine is connected.

The output cables from the machine are attached to the electrofusion fitting.
The machine settings (voltage, current, time) are configured based on the manufacturer’s guidelines.

4. Welding

The machine applies controlled electrical energy to the electrofusion fitting.

The heating coils inside the fitting warm up and melt the pipe’s outer surface.
The pipe and fitting surfaces fuse together, forming a solid, durable joint.

5. Cooling

After the welding process is complete, it is important to allow the joint to cool down before handling.

The cooling time varies depending on the pipe size and fitting type, but no force should be applied to the joint during this period to avoid damaging it.

Key Features of an Electrofusion Welding Machine

Electrofusion welding machines come with several key features that make the process easier, more efficient, and safer.

1. Automatic Control

Many machines have automatic controls, such as barcode scanners, which ensure the correct welding parameters are applied. These systems improve the overall accuracy and consistency of each weld.

2. Portability

Electrofusion welding machines are often portable, making them ideal for on-site welding in remote locations or construction zones. Their lightweight design allows for easy transportation and use in tight spaces.

3. Data Recording & Traceability

Some advanced models come with built-in data recording systems. These systems track important data such as:

Welding parameters (voltage, current, time)
Location and time of the weld
Operator identification for quality assurance

This traceability ensures that every weld is recorded for future inspection or maintenance.

4. Safety Mechanisms

Electrofusion welding machines have built-in safety features to protect both the operator and the equipment, including:

Overheating protection to prevent machine failure.
Emergency stop buttons to instantly halt the process if needed.
Current and voltage monitoring to ensure safe welding parameters.

Advantages of Using Electrofusion Welding Machines

There are several benefits to using electrofusion welding in piping systems:

1. Leak-Proof Joints

The primary advantage of using an electrofusion welding machine is that it creates strong, leak-proof joints. These joints are far more reliable than traditional mechanical fittings, reducing the risk of leaks in pipelines carrying water, gas, or wastewater.

2. Minimal Excavation Required

Electrofusion welding can be used in repair and maintenance work with minimal excavation, which reduces the time and cost involved in digging up pipes.

3. Ideal for Confined Spaces

Electrofusion welding is particularly useful in confined spaces where traditional methods, like butt fusion, may not be practical. It allows for welding in places like trenches or inside buildings.

4. High Durability in Harsh Environments

The joints created using electrofusion are highly resistant to external pressures and environmental factors, making them perfect for applications in harsh environments such as gas pipelines or industrial settings.

Applications in Industry

Electrofusion welding machines are used in various industries for different types of piping systems. Below are some key applications:

1. Water Supply Networks

Electrofusion welding is widely used in the construction of water distribution systems. The durable, leak-proof joints ensure that water pipelines can withstand high pressures and harsh conditions.

2. Gas Distribution Pipelines

For natural gas and propane pipelines, electrofusion welding is essential to prevent leaks that could lead to safety hazards. The high-quality joints formed are ideal for use in underground gas distribution networks.

3. Wastewater Management

In wastewater systems, electrofusion welding ensures that the joints are watertight, even under the high pressures found in sewage systems, minimizing the chances of spills or contamination.

4. Industrial Piping Systems

Electrofusion welding is also used in a range of industrial applications, including chemical plants, food processing facilities, and mining operations where strong, reliable piping is critical.

Tips for Beginners

If you’re new to using an electrofusion welding machine, keep the following tips in mind for successful welding:

1. Proper Pipe Cleaning and Scraping

One of the most important steps is to properly clean and scrape the pipe surface. Oxidation and debris on the pipe can lead to poor fusion and weak joints.

2. Correct Alignment and Clamping

Always ensure that the pipe and fitting are correctly aligned and properly clamped. Misalignment can result in incomplete fusion or faulty joints.

3. Follow Manufacturer’s Parameters

Different electrofusion fittings may have slightly different welding time, voltage, and current requirements. Always refer to the manufacturer’s guidelines for optimal results.

4. Allow Cooling Time

Don’t rush the cooling process. Allow the joint to cool naturally without applying any force. Premature handling can compromise the strength of the weld.
