Electrofusion Welding vs. Extrusion Welding: A Comprehensive Comparison for Industry Professionals

In the selection of pipeline and plastic welding technologies, Electrofusion Welding and Extrusion Welding are two widely used techniques. While both involve the melting and joining of thermoplastic materials, there are significant differences in their working principles, applications, efficiency, equipment requirements, and more.

1. Welding Principles

Electrofusion Welding

Electrofusion welding is a process that uses electric current to heat a resistance wire pre-installed in the fitting to perform welding. During the process, the current passes through the resistance wire, generating heat, which melts the material at the joint and fuses the two parts together. This method is commonly used for joining Polyethylene (PE) pipes, particularly for small pipe fittings such as elbows, tees, and joints.

The main advantage of electrofusion welding is its ability to complete the welding process quickly, with high uniformity and strong joint integrity. The welded joint exhibits physical properties that are typically equal to or better than the original pipeline.

Extrusion Welding

Extrusion welding involves melting plastic material and extruding it through a welding gun to fill the joint gap. The operator manually controls the extrusion process, heating the material and directing it to the weld joint. Unlike electrofusion welding, which is typically used for pipe connections, extrusion welding is often used for repairing large structures or welding large areas, such as plastic sheets and large-diameter pipes.

Extrusion welding offers greater flexibility and is commonly used for repair work, but it is slower than electrofusion welding and requires more skill from the operator.

2. Application Fields

Electrofusion Welding

Electrofusion welding is primarily used in pipeline construction, particularly in applications that require high sealing performance and resistance to high pressure. Typical applications include:

• Urban water supply systems
• Natural gas pipelines
• Chemical substance transport pipelines

This welding method is ideal for a variety of pipeline fittings, such as elbows, tees, and couplings, and can provide stable and durable connections, even under high pressure.

Extrusion Welding

Extrusion welding is more commonly used for repair work and welding large surface areas, especially for the repair of large plastic structures. Its typical applications include:

• Welding large plastic sheets and containers
• Pipe crack repairs
• Joining and repairing plastic components

Due to its flexibility, extrusion welding is often used in emergency repairs and on-site repair work.

3. Welding Speed and Efficiency

Electrofusion Welding

One of the main advantages of electrofusion welding is its speed. The welding process is completed quickly, typically within a few minutes, making it highly efficient for pipe joint connections, especially in large-scale projects where speed is crucial.

Extrusion Welding

Extrusion welding, in contrast, is slower. While it is suitable for large-area welding tasks, the process is more time-consuming due to the need for the operator to manually extrude and apply the molten plastic. Therefore, extrusion welding is better suited for custom applications and repair work, rather than large-scale production welding.

4. Equipment Requirements

Electrofusion Welding

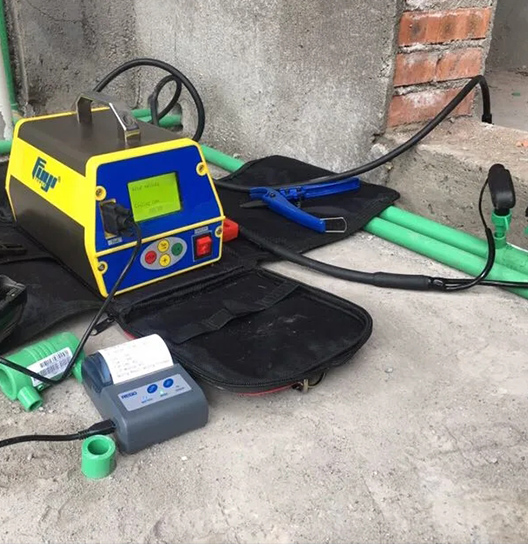

The equipment for electrofusion welding is relatively simple, consisting mainly of the electrofusion welding machine, power supply, and welding fittings. The welding machine is equipped with a control system that precisely manages the heating process to ensure consistent and high-quality welding. Electrofusion welding equipment is typically compact and portable, making it suitable for use in tight workspaces.

Extrusion Welding

Extrusion welding equipment is more complex. It requires a specialized welding gun, heating elements, and equipment for storing and feeding the molten plastic. The equipment is larger and demands a higher level of technical expertise and operator training. Due to the complexity and size of the equipment, initial investment costs for extrusion welding are higher compared to electrofusion welding.

5. Welding Quality and Reliability

Electrofusion Welding

Electrofusion welding provides high-quality, uniform welds. The process is highly controlled, with precise temperature and pressure regulation, ensuring that the welded joint is strong and leak-proof. This makes electrofusion welding a reliable choice for projects that require high-pressure resistance and long-term durability, such as those in harsh environments.

Extrusion Welding

The quality of extrusion welding depends heavily on the operator’s skill level. While it is suitable for a wide range of welding applications, especially for irregular shapes or complex repairs, the quality of the weld may vary. In certain cases, the final weld may not have the same uniformity or reliability as those produced by electrofusion welding.

6. Costs and Maintenance

Electrofusion Welding

The initial investment for electrofusion welding equipment is typically higher, especially for the electrical components and fittings. However, due to its quick welding speed and stable process, the long-term maintenance costs are lower. The speed of electrofusion welding helps reduce on-site repairs and operational errors, which can reduce overall project costs.

Extrusion Welding

Extrusion welding equipment generally requires a lower initial investment, but the complexity of the equipment and the need for skilled operation result in higher maintenance costs. The welding guns, heating elements, and other components require regular maintenance to ensure they function correctly. Additionally, because the welding process is slower, it may lead to higher operating costs over time.

7. Applicable Materials

Electrofusion Welding

Electrofusion welding is primarily used for Polyethylene (PE), Polypropylene (PP), and other thermoplastic materials. It is well-suited for pipe connections that require strong joints and leak-proof seals, especially in high-pressure and corrosion-resistant environments.

Extrusion Welding

Extrusion welding is also compatible with Polyethylene (PE), Polypropylene (PP), and other thermoplastic materials. Due to its ability to handle large areas and complex shapes, extrusion welding is versatile and can be used for a variety of repair and jointing tasks.

8. Electrofusion Welding vs. Extrusion Welding Comparison Table
